Mocul Oil Cooler
The pressed
plate cooler consists of a variable number of aluminium pressed plates
forming oil ways and end tanks, the oil ways contain turbulators which not only
break down boundary layer effect in the flow to obtain maximum heat dissipation
without undue pressure drop but also because they are brazed to both surfaces of
the plates hold them together under pressure.
The oil ways are interspersed with aluminium strip louvered and formed into
corrugations to provide airways. The entire unit is brazed together in a salt
bath. The design is beautifully simple and efficient and most suitable for mass
production, the coolers are available in various heights, usually referred
to in rows, these are the number of oil ways including top and bottom plates
which also carry oil.
Prices:
4 Row Cooler £60
7 Row Cooler £60
10 Row Cooler £60
13 Row Cooler £82
16 Row Cooler £100
19 Row Cooler £108
25 Row Cooler £124
Technical Details:
| number of rows | matrix height in (mm) | weight in (Kgs) | capacity in (litres) |
| 4 | 29 | 0.31 | 0.08 |
| 7 | 53 | 0.39 | 0.14 |
| 10 | 77 | 0.48 | 0.20 |
| 13 | 100 | 0.60 | 0.26 |
| 16 | 124 | 0.67 | 0.32 |
Installation Kits:
| Vehicle | Installation Kit Rubber Hose £ | Installation Kit Stainless Braided Hose £ |
| Spitfire/Herald/Dolomite 1300/1500 | 54 | 89 |
| GT6/Vitesse | 74 | 89 |
| 2000/2500 | 79 | 119 |
| TR5/6 | 74 | 89 |
| Sprint/TR7 | 64 | 89 |
| TR2/3/4/4A | 64 | 119 |
6 Cylinder kit adapters include Spin-Off filter conversion at an additional cost of £22 if desired.
Filter if
required at £7.91
Oil Thermostat:
Inline stat with push-on connections £32.00 (can only be used with rubber kits)
Inline stat with screw-on connections & stub hoses to suit £74.00 (can be used with rubber and braided kits)
On 4 cylinder cars the stat can alternatively be built into the sandwich plate at an additional cost of £36.00 (due to the oil take-off plate design this is not possible on 6 cylinder which must use one of the separate inline stats above if one is required)
Prices quoted exclude VAT
Manufactured in the UK

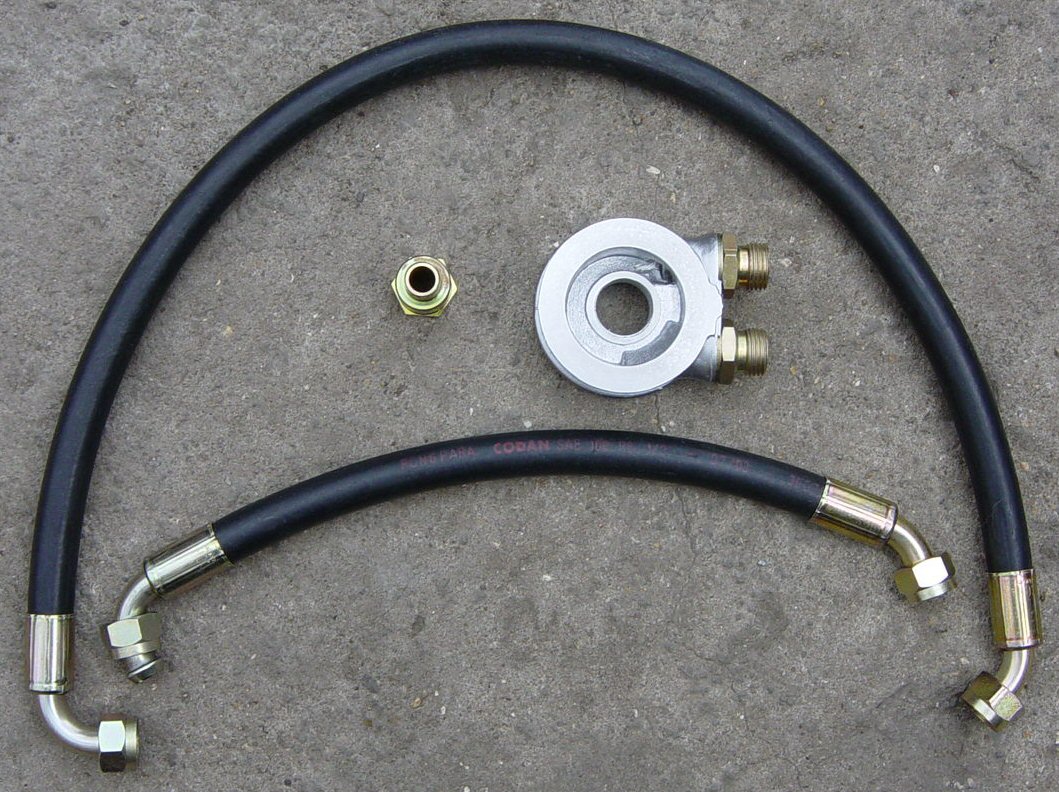

Photo shows example of Spitfire Rubber Hose Cooler Installation Kit (click to enlarge):

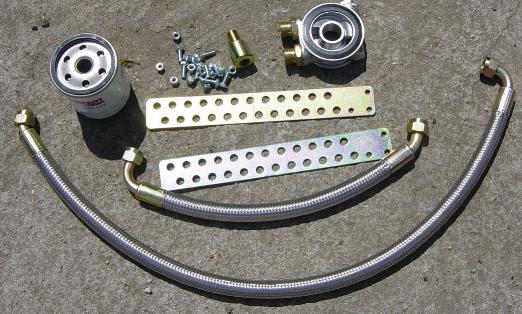

Photo shows example of GT6 Braided Hose Cooler Installation Kit (click to enlarge):

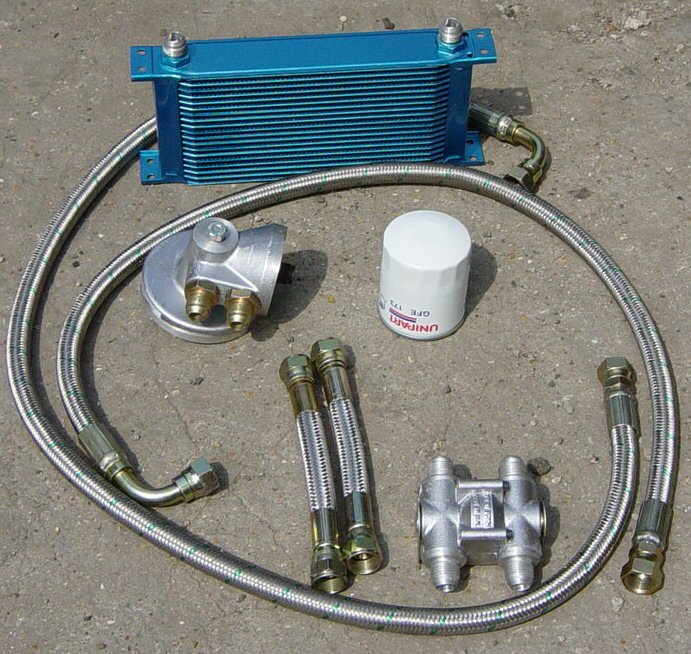

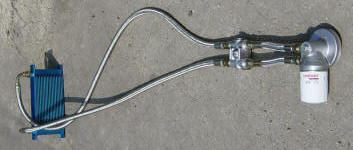

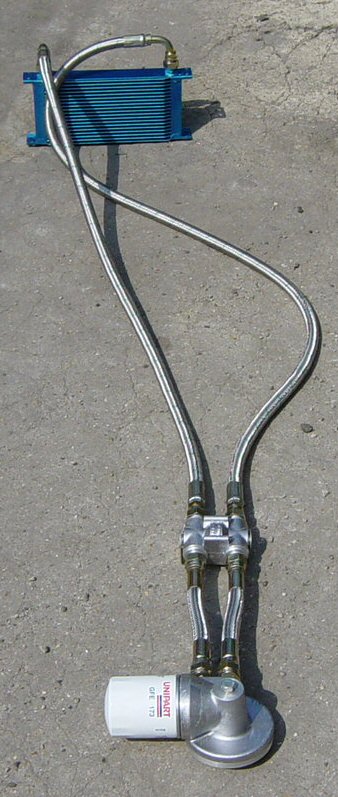

Photos show example of TR6 Braided Hose Cooler Installation Kit with 19 row cooler and thermostat (click to enlarge):
